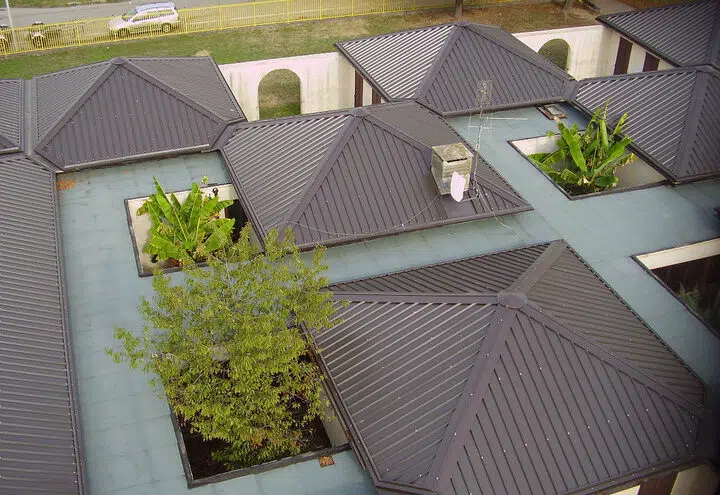

ALUTECH DACH is a 5-rib roofing panel made of two metal sheet facings bonded together by a layer of polyurethane insulation. The panels can be installed on any type of supporting structure, particularly those made of steel elements. The ribbed upper profile enhances the load-bearing performance of the ALUTECH DACH panel, allowing it to be used on wide support spans.
| Profile height: 40 mm | |
| Width: 1043 mm | |
| Effective cover width: 1000 mm | |
| Lengths: 4 / 5 / 6 / 13.50 m | |
| Standard thicknesses “S”: 30–40 mm | |
| Minimum slope: 10% | |
| Overlap: half rib without support foot | |
| Standard upper facing material: pre-painted steel | |
| Standard lower facing material: pre-painted steel | |
| Recommended use: roofing |
RAL 3009 equivalent
Siena Red
The pre-cut is made on the underside of the panel to facilitate the removal of the insulation.
If identical sheets are used (all with right-hand overlap or all with left-hand overlap), the laying direction must be reversed when covering the second roof pitch.
To maintain the same laying direction, sheets with left-hand overlap must be used for the first roof pitch and sheets with right-hand overlap for the second roof pitch.
straight translucent polycarbonate sheet
notched ridge cap in pre-painted steel
rib closure profile in pre-painted steel
notched roof-to-wall flashing in pre-painted steel
side closure element in pre-painted steel
