IL COPPO - TILE SHAPED SHEET WITHOUT INSULATION

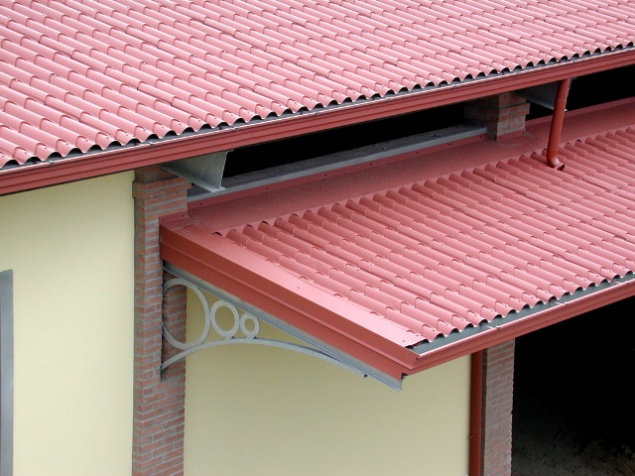

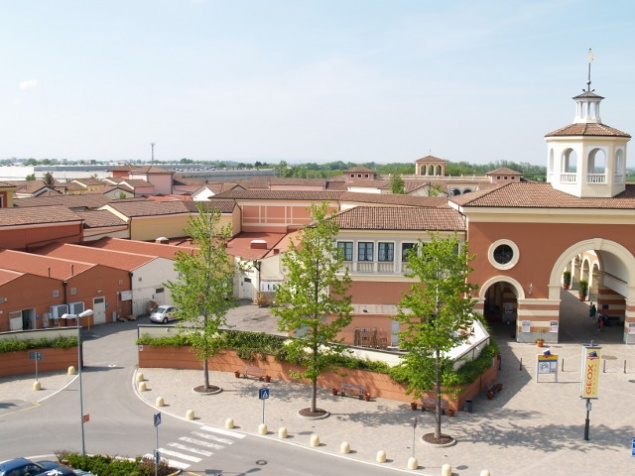

 “Coppo” is a corrugated metal sheet in the shape of a tile without insulation, a combination of tradition and innovation thanks to the appearance of the traditional tile combined with metal technology. The roof becomes extremely light compared to the old solutions, significantly increasing the service life of the covering.

Fixing on wood

Side overlap of half a corrugation

Total width / useful width 1039 mm / 985 mm
Standard lengths 1600 mm, 2300 mm, 3000 mm, 4050 mm
Initial / end section 90 mm / 85-340 mm
Weight of the sheet in pre-painted steel 5,7 kg/sqm
in pre-painted aluminium 3,2 kg/sqm
Minimum slope 15%
Material prepainted steel, prepainted aluminium

ll Coppo can be installed over metal or wooden structures: the recommended spacing of the supports is 350 mm.

Gently slanting roofs

Il Coppo can be used on roofs with a minimum slant of up to 15% because as it is just the one length it has no overlaps and can therefore guarantee absolute impermeability.

 Sharpy slanting roofs

As Il Coppo is fixed to a prepared framework it can be applied on all sloping angles, even attics and other structures.

TOP FINISH COLORS

Standard tile red

Antiqued tile red

Antiqued sand

For information about the product or to request a quote please fill out the form below.

    I have read and accepted the privacy.

    CATEGORY INDEX

     “Coppo” is a corrugated metal sheet in the shape of a tile without insulation, a combination of tradition and innovation thanks to the appearance of the traditional tile combined with metal technology. The roof becomes extremely light compared to the old solutions, significantly increasing the service life of the covering.

    Fixing on wood

    Side overlap of half a corrugation

    Total width / useful width 1039 mm / 985 mm
    Standard lengths 1600 mm, 2300 mm, 3000 mm, 4050 mm
    Initial / end section 90 mm / 85-340 mm
    Weight of the sheet in pre-painted steel 5,7 kg/sqm
    in pre-painted aluminium 3,2 kg/sqm
    Minimum slope 15%
    Material prepainted steel, prepainted aluminium

    ll Coppo can be installed over metal or wooden structures: the recommended spacing of the supports is 350 mm.

    Gently slanting roofs

    Il Coppo can be used on roofs with a minimum slant of up to 15% because as it is just the one length it has no overlaps and can therefore guarantee absolute impermeability.

     Sharpy slanting roofs

    As Il Coppo is fixed to a prepared framework it can be applied on all sloping angles, even attics and other structures.

    TOP FINISH COLORS

    Standard tile red

    Antiqued tile red

    Antiqued sand
